CP3-VAC-DRK

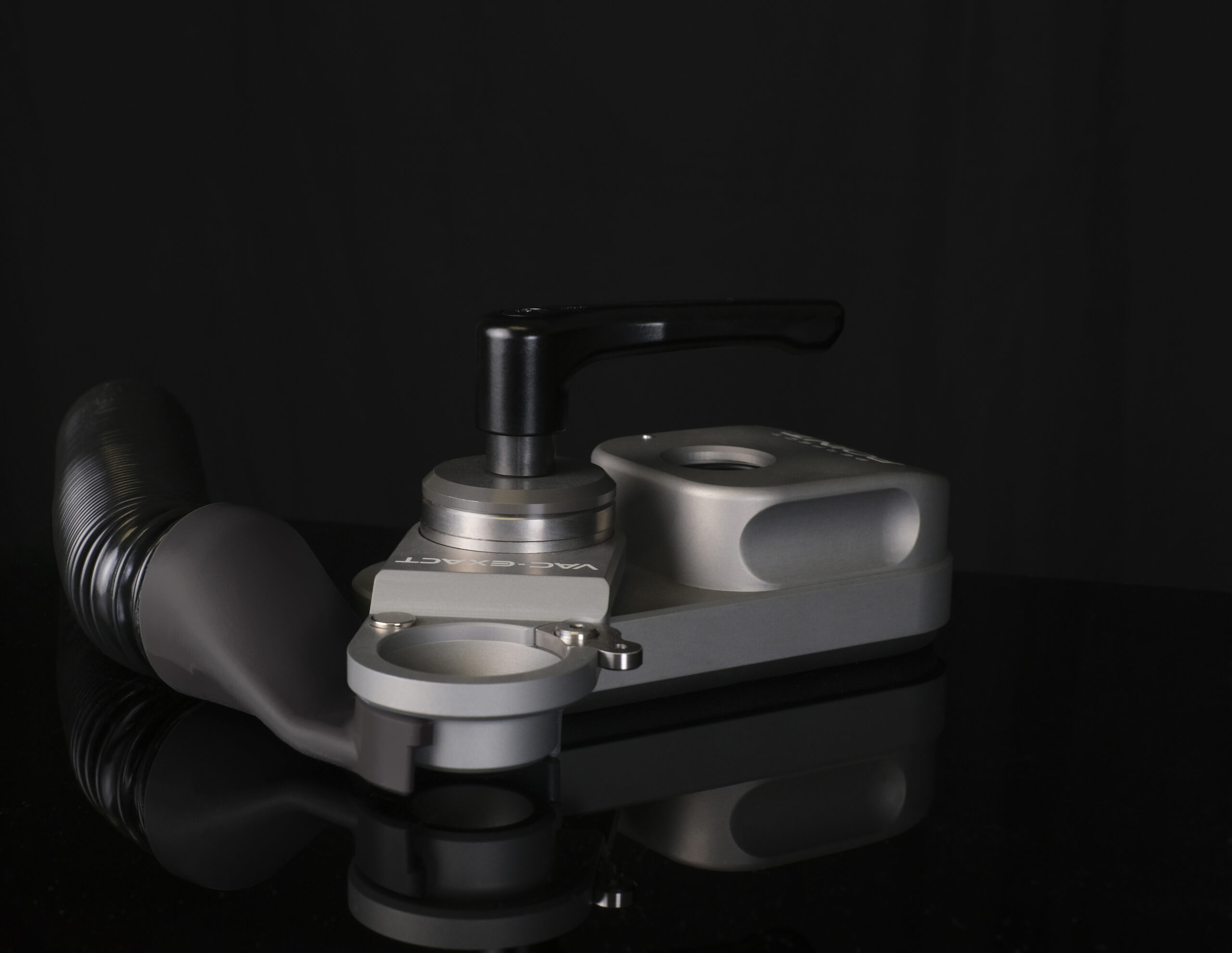

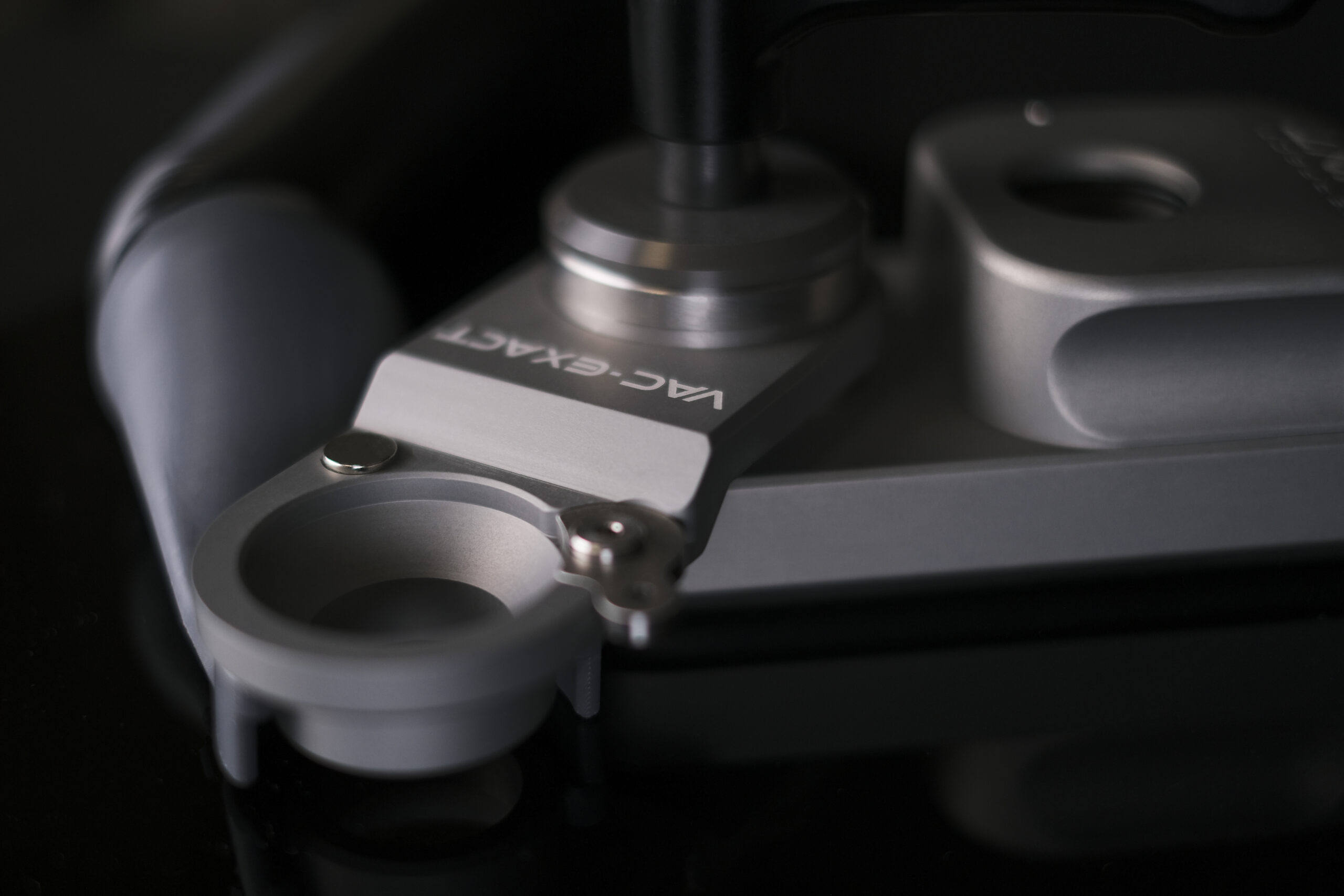

Vac-Exact is a portable, vacuum-assisted drill fixture that brings pinpoint accuracy to fastener hole repair, re-drilling, and surface alignment tasks—without the need for clamps or external fixturing. Designed for use on both curved or flat structures, Vac‑Exact uses shop air to vacuum-lock in place and guide the drill precisely where needed using standard, off-the-shelf, renewable slip-fixed drill bushings.
The result: accurate, repeatable drilling that reduces rework, FOD risk, and tool wander. It’s ideal for on-wing repair, manufacturing rework, and other tight-access structural drilling tasks across aerospace, automotive, and industrial applications.

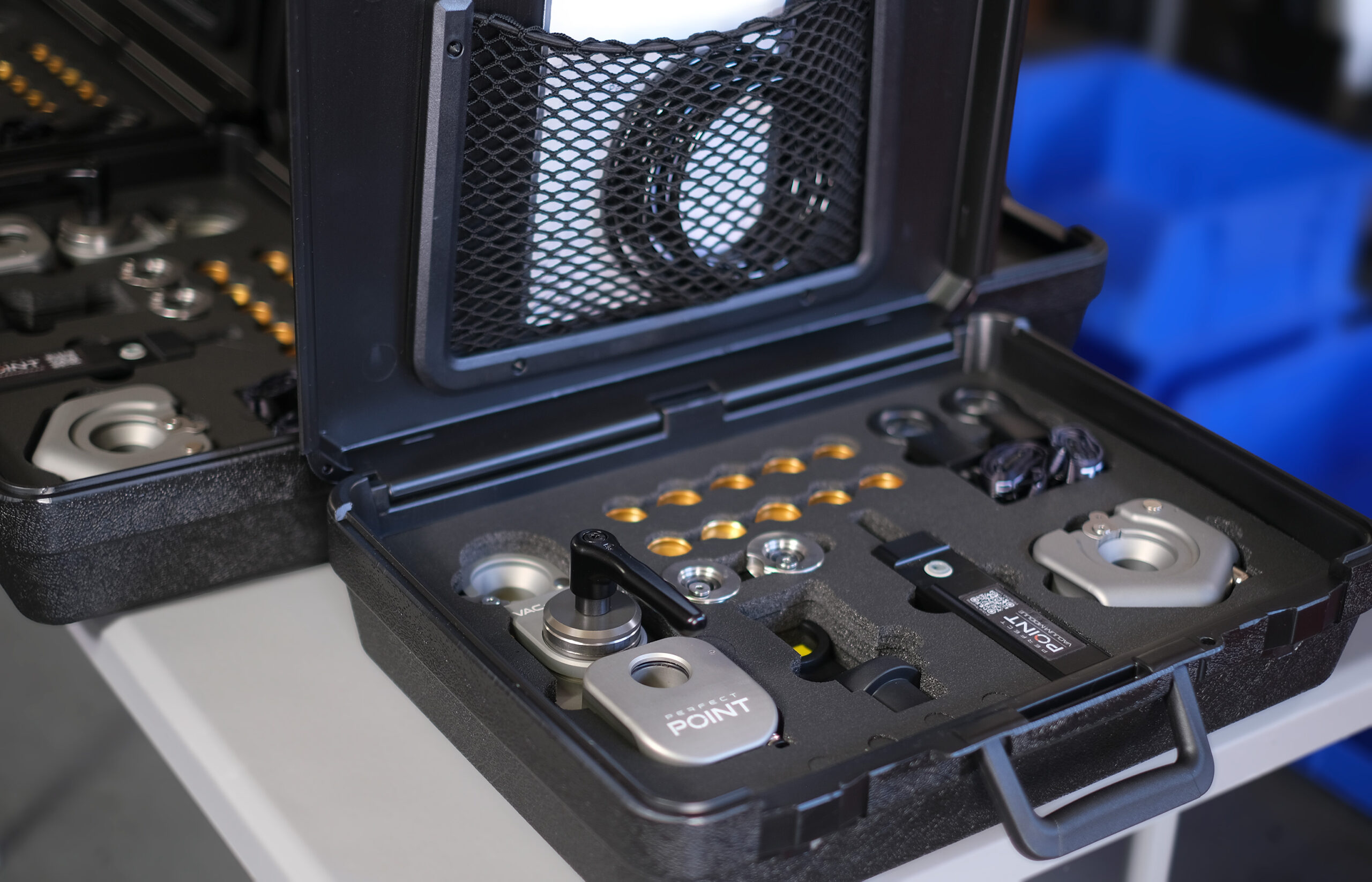

The full kit comes ready for field or shop use in a laser-cut protective case, with bushings, adapters, and a full ring set included.
To learn more, visit the Vac‑Exact product page: ppedm.com/vac-exact

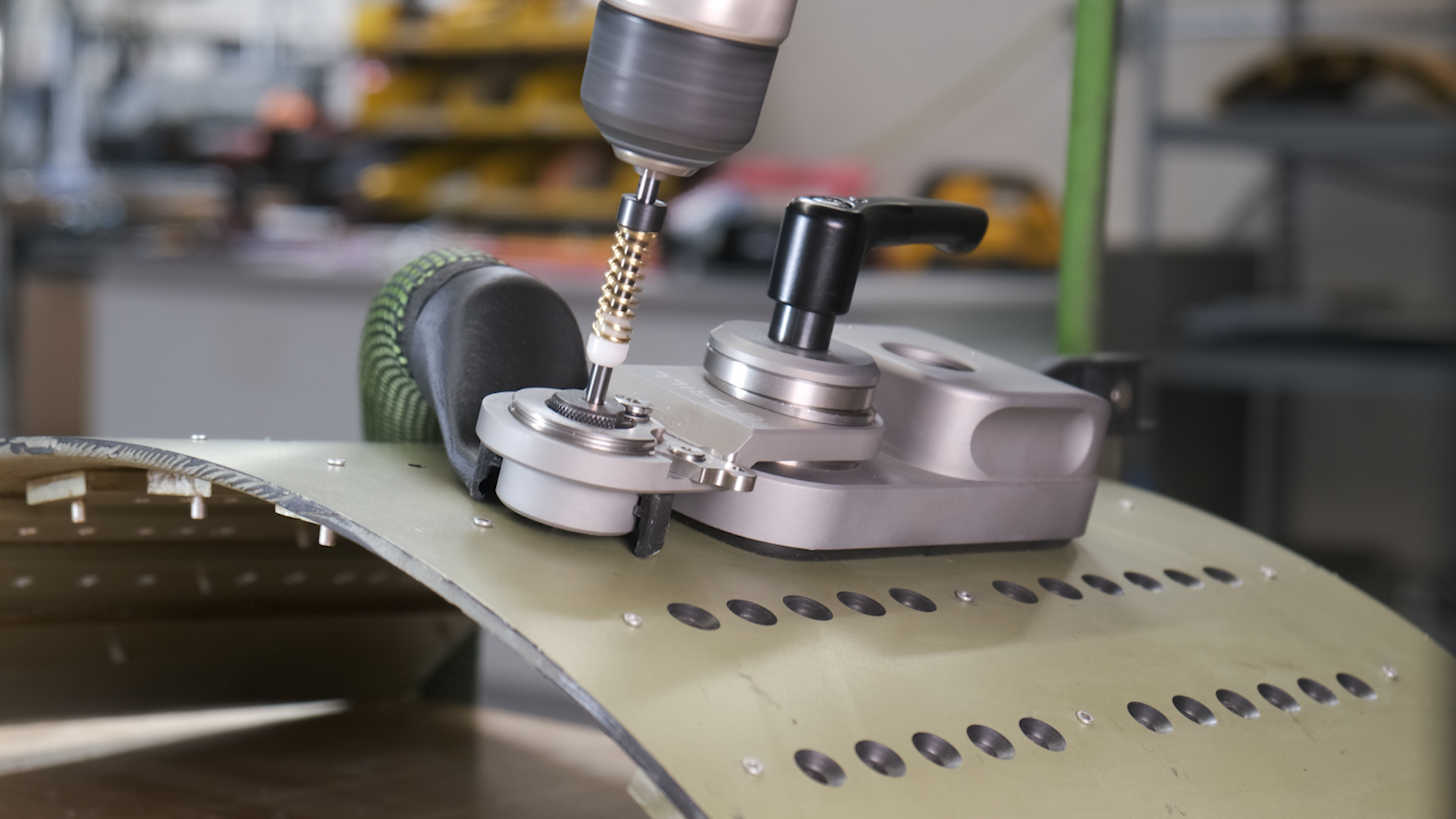

Watch Vac-Exact in action:

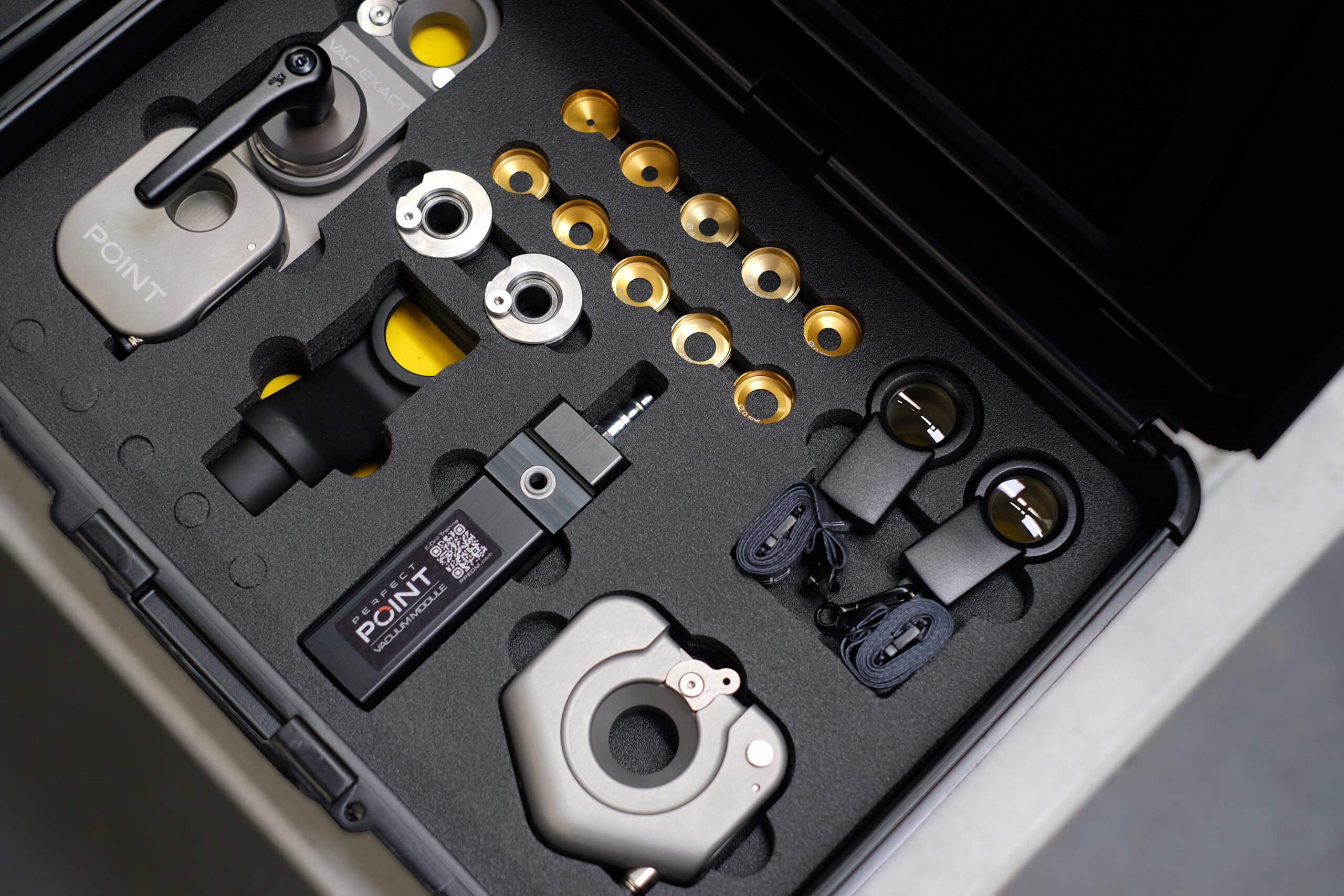

What’s Included:

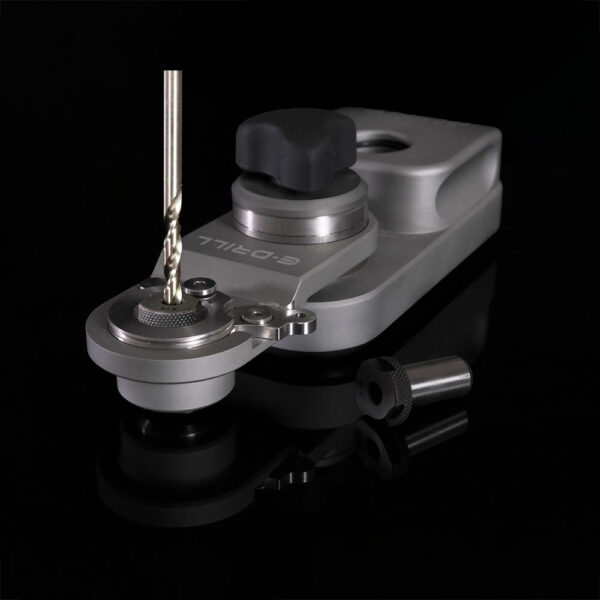

• 1 × EDF1328 – Drill Ream Offset Vacuum Locator

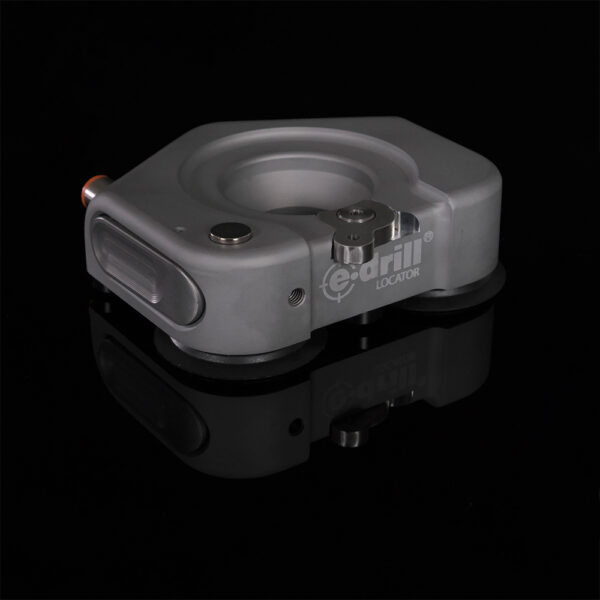

• 1 × EDF1330 – Drill Ream Vacuum Flush Head Locator
• 2 × EDF0224 – Aperture Bombsights
• 1 × EDF1327 – Vacuum Pump Module

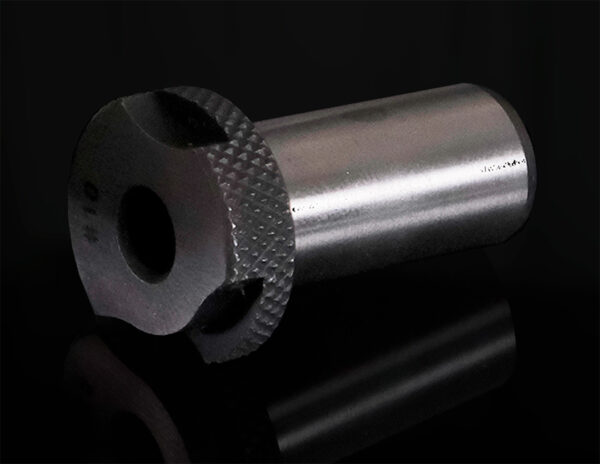

• 2 × EDF1329 – Drill Bushing Adapters (with 0.500” Slip-Fixed Renewable Drill Bushings)
• 9 × EDF1221-Series Aperture Rings:
– 0.505″, 0.490″, 0.400″, 0.385″, 2 × 0.370″, 0.355″, 0.310″, 0.265″, and 0.125″ (Blank)
• 1 × 10 ft Air Hose
• 1 × Custom Laser-Cut Foam in Protective Case
